Viking_logoBright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.

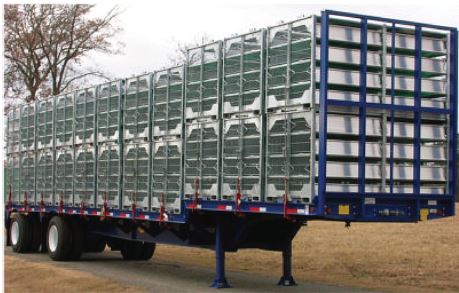

Designed specifically for the poultry industry. The Viking Specialized Poultry Platform Drop Deck is a poultry live transport trailer designed for chickens and turkey. Available front and rear bulkheads provide added security for cage movement and panels can be added to block direct wind during transportation. Capacity: 80,000 lb. GVWR.

Features

Mainframe

24” Fabricated main beams with 2” camber, 1/2″” x 6” top and bottom flanges in the rear deck with 1/4” web welded on both sides. 1/2″ x 6″ top flange in the neck and 3/4″ x 6″ bottom flange in the neck. All flange and web material is high strength steel.

Crossmembers

6” x 3.7# Jr. I beam on 16” centers.

Kingpin

2” SAE kingpin, 3/8” kingpin plate, 36” kingpin setting (standard).

Siderails

8” x 8.5# structural channel; Inverted with nesting angles for chicken cages or smooth sides without nesting angles for turkey coops.

Suspension

HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs.

Axles

(2) 25,000 Lb., 5” round, 5/8” wall.

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

11R x 22.5 Radials.

Landing gear

Our standard landing gear has a 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity

Finish

Poultry platform trailers are shotblasted and primed with zinc-rich primer and top coated with a high solid polyurethane paint. Colors: black, red or cat yellow (standard).

Floor

1-1/2″ Treated shiplap pine (fully floored)

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn (4 Light cornering system and back-up lights are available).

Tandem

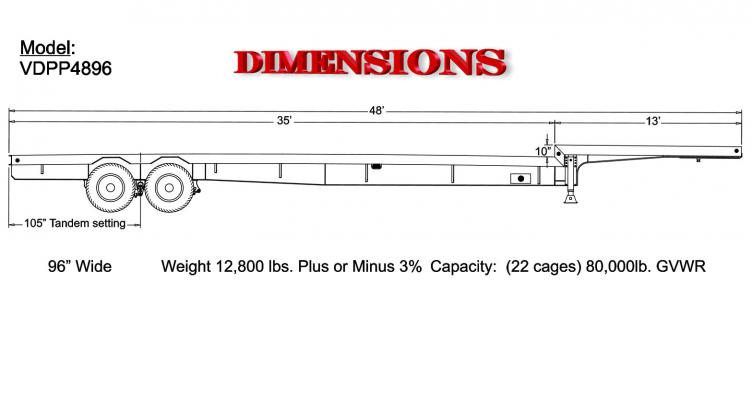

105” from the rear of the trailer with 49″ axle spacing (optional settings available).

Tiedowns

3/4” Tie bar located under the crossmembers running the full length of the trailer for chain and binder attachment. (not included on turkey platform.)

Rear bumper

D.O.T. certified rear underride guard/bumper and high visibility reflective conspicuity tape.

Options

  • Air ride suspension
  • Fully floored with 10 gauge steel
  • (22) 4″ Weld-on or bolt-on winches
  • Custom paint colors
  • Polished or machine finished aluminum wheels
  • D-rings
  • 3-Wheel lift transport kit
  • Improved stability system
  • Tire inflation system
  • Contact a sales representative for additional options to meet your specific needs.
