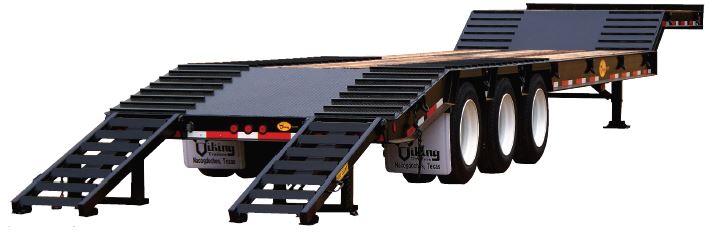

35 or 40 Ton “Loadhandler” Lowboy

Viking_logoBright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.


The Viking Specialized 35 Ton and 40 Ton “Lowboy” trailers are two of the most versatile trailers on the market. These heavy duty Lowboy trailers have proven themselves for transporting heavy equipment and materials from job to job. Capacity: 86,000 lb. GVWR (35 Ton model) or 100,000 lb. GVWR (40 Ton model).

Features

Mainframe

16” Fabricated main beams, 1/2” x 6” top flange and 3/4” x 6” bottom flange with 1/4” web welded on both sides. All flange and web material is high strength steel.

Crossmembers

8” x 6.5# Jr. I beam on 16” centers.

Kingpin

2″ SAE kingpin, 3/8” kingpin plate, 20” kingpin setting, 84” swing clearance.

Siderails

12” x 20.7# Structural channel, 8” x 8.5# structural channel on the neck.

Suspension

HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs (35 Ton);
HUTCH® H9700TRI four point spring suspension (40 Ton)

Axles

(2) 25,000 Lb., 5” round, 5/8” wall (35 Ton);
(3) 25,000 lb. 5” round, 5/8” wall (40 Ton).

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M)
ABS on one axle (40 ton model, 4S/2M).

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

255/70R x 22.5 Radials.

Landing gear

Holland® Mark V 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).

Finish

Shotblasted and painted with a high solid polyurethane paint. Colors: black, red, or cat yellow (standard).

Floor

2” Nominal oak (standard), 1/4” tread plate with 1” traction bars over tandems. 1/4” Smooth plate with 1” traction bars on transition to the upper deck.

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn. (standard)

Tandem

Set at 108” from the rear of the dovetail.

Dovetail

5 ft. Metal covered with 1/4” tread plate and 1” traction bars (Optional open floor dovetail with inverted angle iron for self cleaning).

Loading ramps

(2) 6’ Stand up ramps with double compression springs on each ramp that assist in raising and lowering.

D-rings

18 Total (4) 1” on front deck, (14) 1” on rear deck.

Options

  • Single point spring suspension
  • Air ride suspension
  • Flooring: apitong, shiplap pine or steel decking
  • Weld-on winches
  • Longer or shorter trailer lengths
  • Hydraulic assisted ramps
  • Third ramp for 3-wheel field loader
  • Epoxy primer and custom colors available
  • 4′-6″ Lay flat ramps
  • 2-Axle 35 Ton Capacity or  3-Axle 40 Ton capacity
  • 1-1/4″ pipe railing
  • Tire inflation system
  • Contact a sales representative for additional options to meet your specific needs.
Capacity 35-Ton 40-Ton
Model VFD46R16F35T VFD46R16F40T
Approximate Weight 16000 lbs. 18900 lbs.
GVWR 86000 lb. 100000 lb.
