Two Lift Transport Trailer

Viking_logoBright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.

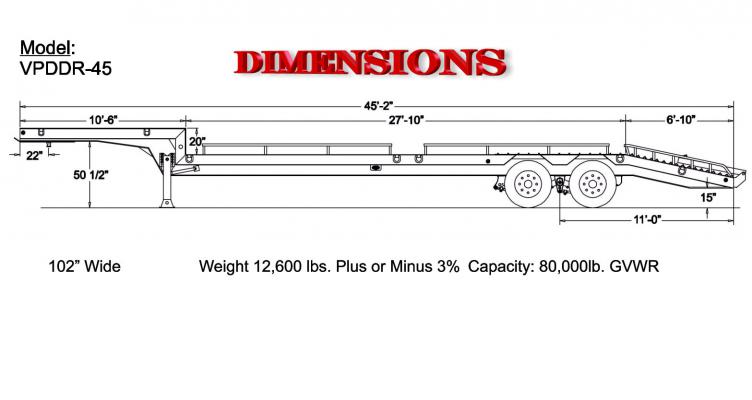

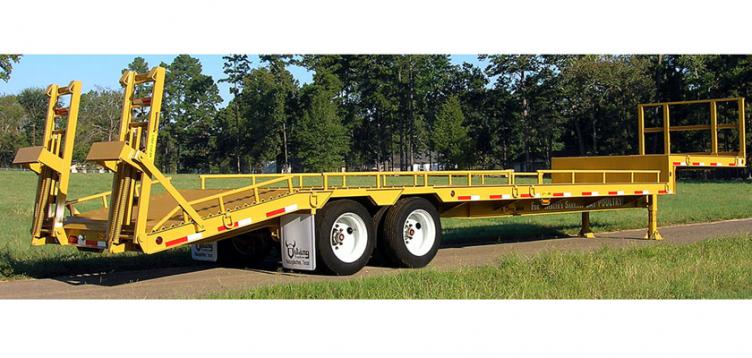

The Two Lift Transport trailer was designed to deliver two 4-wheel machines on site. It also has the ability to haul fuel and other items needed in the field on the upper deck. The two lift transport is a must have when getting equipment delivered on site. Three wheel machines can also be hauled with the addition of a third ramp. Capacity: 80,000 lb. GVWR.

Features

Mainframe

16” Fabricated main beams, 1/2” x 6” top flange and 3/4” x 6” bottom flange in the neck and 1/2” x 6” top and bottom flange in the lower deck with1/4” web throughout that is welded on both sides for superior strength.

Crossmembers

6” x 7.3# Jr. I-beam on 16” centers.

Kingpin

2” SAE kingpin, 3/8” kingpin plate, 22” kingpin setting (standard).

Siderails

8” x 8.5# (Inverted) structural channel.

Suspension

HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs.

Axles

(2) 25,000 Lb., 5” round, 5/8” wall.

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

255/70R x 22.5 Radials

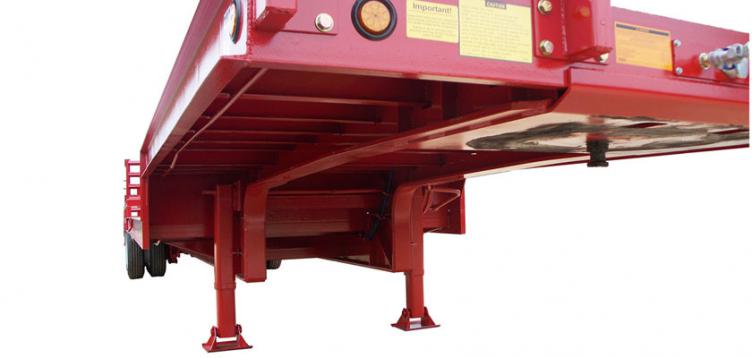

Landing gear

Holland® Mark V 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).

Finish

Shotblasted and painted with a high solid polyurethane paint. Colors: black, red or cat yellow (standard).

Floor

1-1/2” Shiplap treated pine (standard). 1/4” tread plate with 1” traction bars over tandems.

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn.

Tandem

Set at 132” from the rear of the dovetail.

Dovetail

6’ 6” Long; self cleaning inverted angle iron.

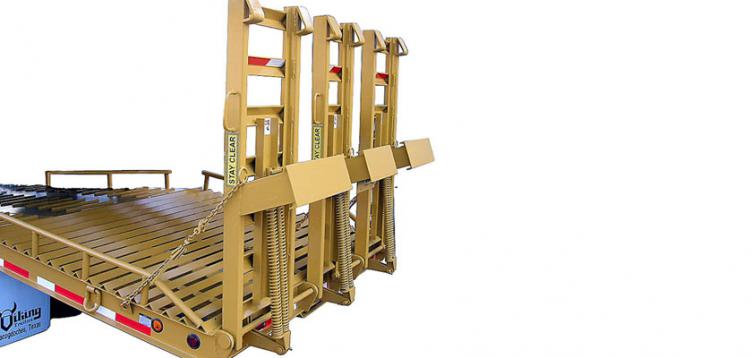

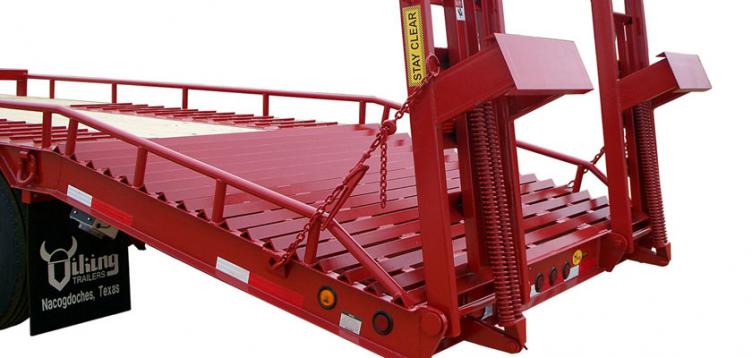

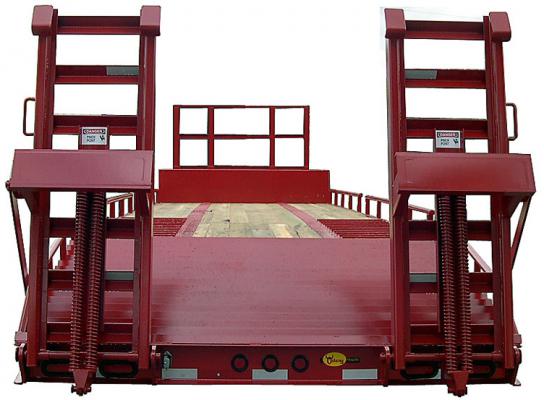

Loading ramps

(2) 6’ Stand up ramps with double compression springs.

Options

  • Flooring: apitong wood flooring, or steel
  • Third ramp for 3-wheel field loader
  • Optional paint colors available
  • Epoxy or zinc-rich primer
  • Tire inflation system
  • Single Lift Transport available
  • Contact a sales representative for additional options to meet your specific needs
