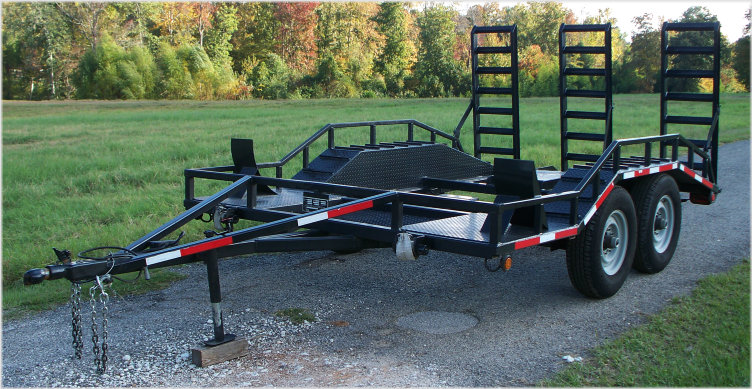

Three Wheel Lift Transporter

Viking_logoBright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.


The Three Wheel Lift Transport trailer was specifically designed to move the Bright BC3-5000 or the  Bright BC3-6000 3-wheel lift machines for the poultry industry. The three wheel lift transport makes it easy to deliver an additional lift on-site or to another location at a moment’s notice.

Features

Frame

All Steel Construction

Pull Hitch

Bull dog Hitch

Suspension

Torsion Bar

Axles

(2) 6,000 Lb.

Brakes

Electric with Shur-set III Lockable breakaway safety system

Wheels

8 hole standard Steel

Tires

235/85R16 Radials

Jack

Bull dog screw type

Finish

Shotblasted and painted with a high solid polyurethane paint

Floor

Metal

Lights

On sides and across rear (Reflective tape on both sides and rear)

Loading ramps

(3) 6′ Stand-up ramps

Tiedowns

(2) 3,000 lb. Chain binders
(2) 3,000 lb. Straps on front

Specifications

  • Model: V3WL-19
  • Overall Length: 19′
  • Overall Width: 102″
  • Weight: 2,760 lbs. +/- 3%
  • Approximate Weight loaded: 10,600 lbs.
  • Capacity: 12,000 lb. GVWR
