Viking_logoBright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers.

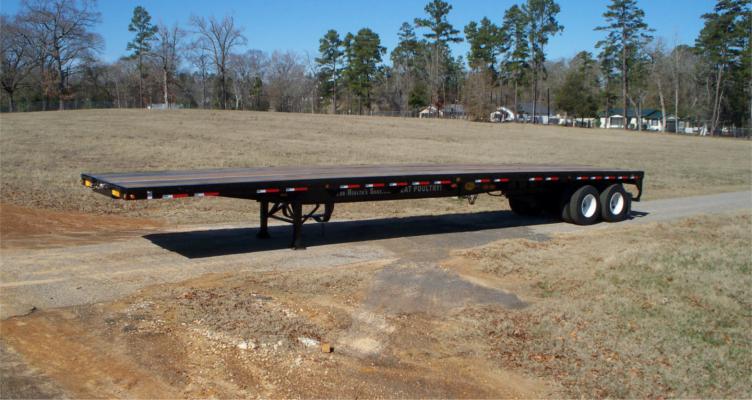

Designed specifically for the poultry industry. The Viking Specialized “Poultry Platform” is a fully floored poultry live transport trailer designed for chickens and turkey. Available with front and rear bulkheads that provide added security for cage transportation and panels can be added to block direct wind during transport. Capacity: 80,000 lb. GVWR.

Features

Mainframe

24” Fabricated main beams with 2” camber, 3/8” x 6” top and bottom flanges with 1/4” web welded on both sides. All flange and web material is high strength steel.

Crossmembers

6” x 3.7# Jr. I beam on 16” centers.

Kingpin

2” SAE kingpin, 3/8” kingpin plate, 36” kingpin setting (standard).

Siderails

8” x 8.5# structural channel; Inverted with nesting angles for chicken cages or smooth sides without nesting angles for turkey coops.

Suspension

HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs.

Axles

(2) 25,000 Lb., 5” round, 5/8” wall.

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

11R x 22.5 Radials.

Landing gear

Our standard landing gear has a 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity

Finish

Poultry platform trailers are shotblasted and primed with zinc-rich primer and top coated with a high solid polyurethane paint. Colors: black, red or cat yellow (standard).

Floor

1-1/2″ Treated shiplap pine (fully floored)

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn (4 Light cornering system and back-up lights are available).

Tandem

105” from the rear of the trailer with 49″ axle spacing (optional settings available).

Tiedowns

3/4” Tie bar located under the crossmembers running the full length of the trailer for chain and binder attachment. (not included on turkey platform.)

Rear bumper

D.O.T. certified rear underride guard/bumper and high visibility reflective conspicuity tape.

Options

  • Air ride suspension
  • Front and rear bulkheads
  • Flooring: apitong (stripped configuration)
  • (22) 4″ Weld-on or bolt-on winches
  • Custom paint colors
  • Polished or machine finished aluminum wheels
  • D-rings
  • 3-Whel lift transport kit
  • Improved stability system
  • Tire inflation system
  • Smooth sides for turkey application
  • Contact a sales representative for additional options to meet your specific needs.
