Viking_logoBright Coop, Inc. is the authorized dealer for Viking Specialized Poultry Trailers

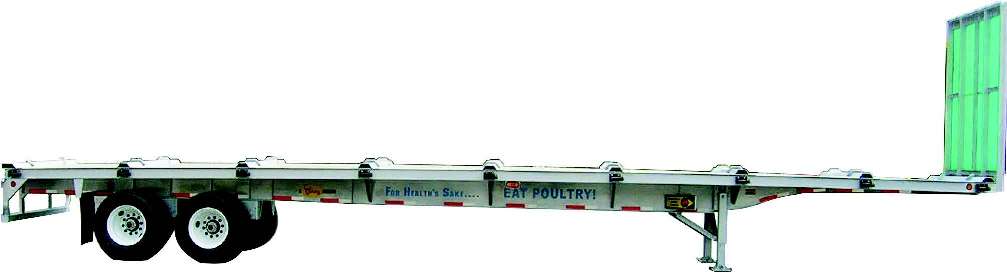

Designed specifically for the poultry industry. The Viking Specialized “Poultry Special” is a fully floored poultry live transport trailer designed for turkeys. Formed angles are to create a 8-1/2” airspace between coop stacks. Standard front bulkhead that provides added security for coop transportation and weather panels can be added to block direct wind during transport. Capacity: (40 coops on 48’ trailer, 45 coops on 53’ trailer) 80,000 lb. GVWR.

Features

Mainframe

24” Fabricated main beams with 2” camber, 1/2” x 5” top and bottom flange welded on both sides with 1/4” web (3/8” web in the neck and 8” neck depth). All flange and web material is high strength steel.

Crossmembers

4” x 3.2# Jr. I beam on 16” centers.

Kingpin

2” SAE kingpin, 1/2” kingpin plate, 36” kingpin setting, Easy clean kingpin assembly.

Siderails

6” x 8.2# Structural channel (Flanges positioned outward).

Suspension

Hendrickson 25K ATT INTRAAX® Air suspension with dump valve.

Axles

(2) 25,000 Lb., (5-3/4” round).

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (4S/2M) ABS on Two axles.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

11R x 22.5 Radials.

Landing gear

Holland® Mark V 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity.

Finish

Poultry Special trailers are shotblasted, primed with zinc-rich primer and top coated with a high solid polyurethane paint. Color: black, red or cat yellow (standard).

Floor

12 gauge Smooth plate (fully floored).

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn. (4 Light cornering system and back-up lights are available).

Tandem

102” From the rear of the trailer with 49” axle spacing (optional settings available).

Tiedowns

9 Per side / (18 total) for 48’ trailer, 10 per side / (20 total) for 53’ trailer.

Rear bumper

D.O.T. certified rear under ride guard/bumper and high visibility reflective conspicuity tape.

Options

  • Rear bulkhead full width and height
  • Rear bulkhead 3/4 width and height
  • Optional paint colors available
  • Polished or machine finish aluminum wheels
