Conveyors are independent of each other and can be removed or stacked for additional layers.
A solid top for each layer prevents bird “hang-up” and provides a smooth ride for the birds during loading and unloading.
Wash-out holes in each layer coupled with solid tops make clean up easy.
An adjustable and removable slide for the rear of the trailer improves grade and DOA’S during the unloading process. Poults (young turkeys) are loaded from the rear end of the trailer. One person can stand on the ground and actuate the hydraulic valves with an extension handle, eliminating the need to climb onto the trailer. A bed of shavings is placed at the end of the trailer and poults are discharged and then herded into the house.
Individual layers provide 15-1/2” of headroom. Belt floors are 72” wide (PVC type).
Self contained hydraulic unit powered by a 20 H.P. Honda® engine.
Call us for more detailed specifications on trailer.
18” fabricated I-beam
6” Jr. I-beam on 18” centers
1/4” kingpin plate 22” kingpin setting
8” structural channel
Three point spring suspension
(2) 22,500 lbs., 5” round
16-1/2” X 7”, type 30/30 brake chambers, outboard drums, (2S/1M) ABS on one axle
10 hole steel disc
255/70R X 22.5 radials
Holland® Mark V 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard)
Viking Specialized Trailers are shot-blasted and primed with Zinc-Rich primer and top coated with a high solid polyurethane paint. Colors: black or red (standard) optional colors available
Sealed wiring harness, rubber mounted LED lights
D.O.T. certified rear under ride guard/bumper and high visibility reflective conspicuity tape.

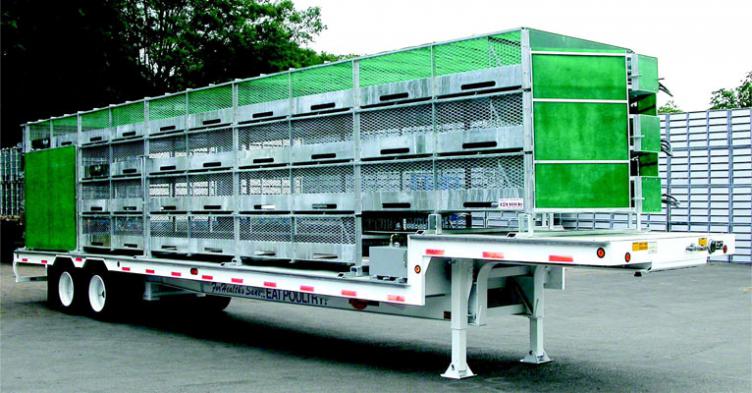

- Viking Specialized – “Poult” Transport Trailers can be manufactured with stripped or full floor with fiberglass covering, cornering lights, air ride suspensions, sliding suspensions, drop decks, flat decks, and other features to better serve your needs.
- Contact a sales representative for more options to meet your needs.
