Item # 070-00640
Item # 070-00640

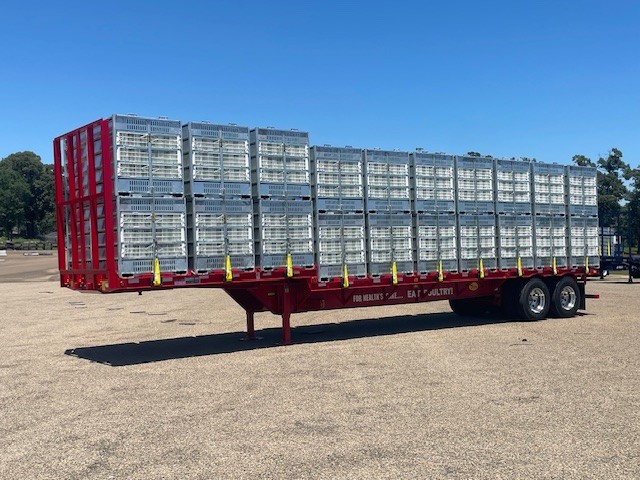

Viking Poultry Special Drop Deck with Bright EZ Tech cages. The cages have the solid slotted bumper plate.
Viking Poultry Special Drop Deck with a load of Bright EZ Tech cages.

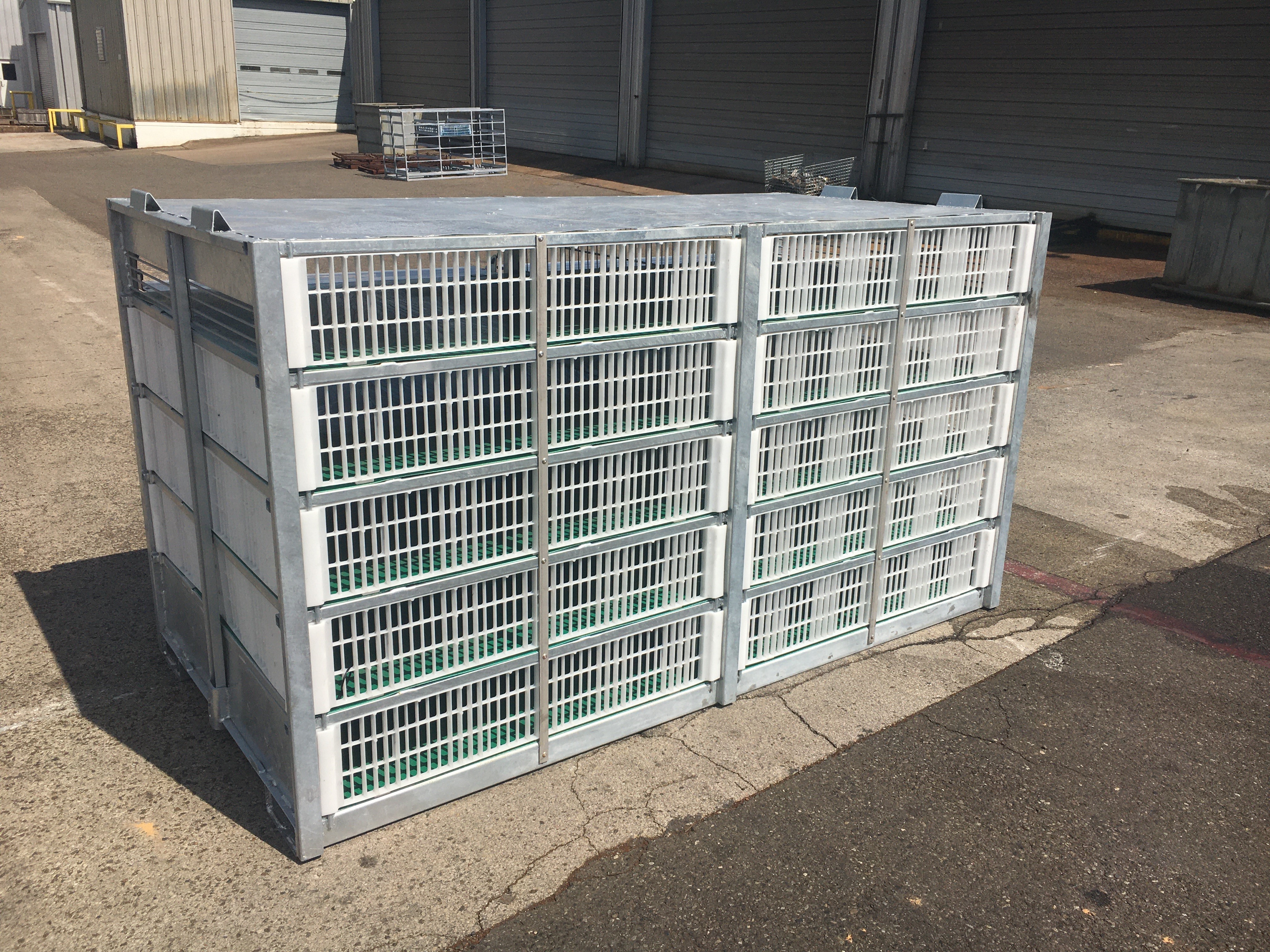

The Bright EZ Tech cage has plastic partitions that are thpartition on three sides of the cages. Replacement has never been easier.

    Features

    • Plastic partition that require no tools to put back in place or replace.
      • All three sides have partitions that are interchangeable.
    • Sturdy base made from two 3" x 8" x 11 gauge structural tubing and four crossmembers.
      • The tubing includes formed inserts at high stress points for durability
    • Cage hook anchor point integrated to the base.
    • "No hang bird" brackets along with the door rod location prevent bird damage while unloading at the processing plant.
    • One piece bumper plates are Bright's exclusive design to protect the birds against forklift fork damage.
    • 20 gauge (.036) thick solid steel top covers from tubing to tubing and acts as a shear plate.
    • Front uprights are made from 1-1/2" x 2" x 11 gauge structural tubing.
    • The "Double Hollow" high strength aluminum (6063-T6) doors are fitted with galvanized angles. The angles are riveted in place with "Huck" high strength rivets.
    • All Bright's door hardware is stainless or galvanized steel for durability.
    • Standard floors are Extruded fiberglass. (Green)

    Options

    • Heavy Duty Base
      • 3" x 8" x 3/16" structural tubing
      • Three clean-out slots per fork tube to reduce weight and prevent litter accumulation
    • Recessed top
    • Uprights made from 2" x 1" x 1/8" channel in lieu of structural tubing
    • Premium green ARMT fiberglass floors. (The most durable floor on the market.)
    • Solid Bumper plates, both top and bottom, with and without slots

    Specifications

    Door Opening Height:
    8-3/4"

    Inside Head Height
    9-3/4"

    5 floors x 3 doors
    Dimensions: (47-3/4" wide; 95-3/4" long; 52" tall plus nesting angles
    Approx. weight: 897 lbs.

    6 floors x 3 doors
    Dimensions: 47-3/4" wide; 95-3/4" long; 62" tall plus nesting angles
    Approx. weight: 1016 lbs.

    5 floors x 2 doors
    Dimensions: (47-3/4" wide; 95-3/4" long; 52" tall plus nesting angles
    Approx. weight: 870 lbs.

    6 floors high x 2 doors
    Dimensions: 47-3/4" wide; 95-3/4" long; 62" tall plus nesting angles
    Approx. weight: 1011 lbs.

    Accessories Available

    • 3,000 lbs. certified cage hook with dual spring
    • 3,150 lbs. certified chain binder
    • Nylon straps
