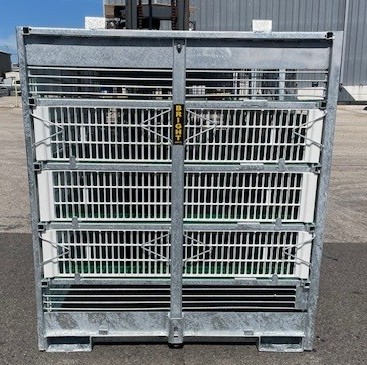

Built for long service life with Bird PROTECTION PLUS (+) Safety features built in. Bright’s PRO+ Lite Cage delivers all the features of our PRO+ Premium (Bright Premium Cage) but is specifically designed for those concerned with weight issues. Less weight; not less quality!

Features

Doors

Choice of 2 or 3 doors per floor; Double Hollow extruded aluminum door with galvanized riveted angles provides a wide, easy loading opening; pre-punched so it can be reversed (turned over and new door bracket bolted on to give longer door life); axles can be put in top or bottom of door when reversed.

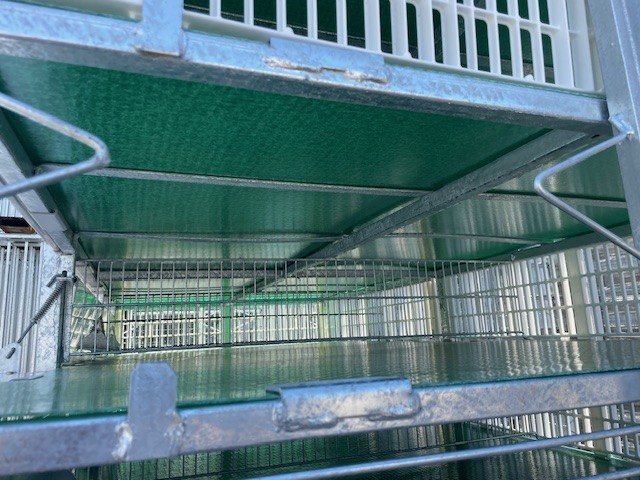

Floors

Choice of Bright’s highly recommended #1 Green hand rolled fiberglass with woven matting and reinforced edges, or white machine extruded acrylic fiberglass.

Nesting

4 on the top (2 at each end) assures alignment and helps reduce cage shifting during transport

Partitions

Top of partitions are welded to floor joist for added structural strength; Vertical partitions are standard at bottom on cage ends. Horizontal partition is still available on request.

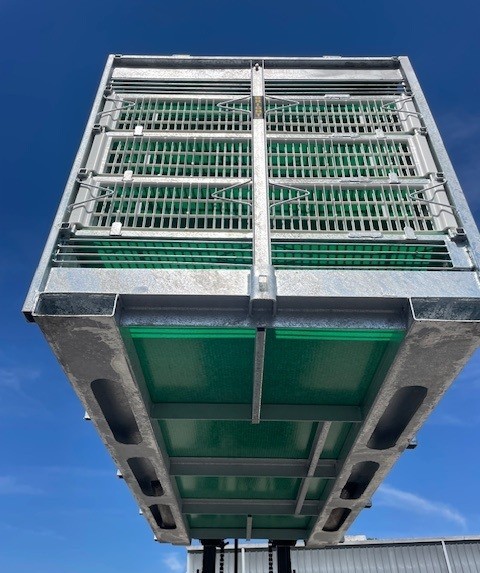

Forktube

3″ x 8″ x 11 ga. with 3″ x 3″ inserts welded into fork tubes for added strength. Includes slotted cut outs for less weight and easier clean out.

Safety

All cage Securement devices are tested and rated at 3,000 lb Working Load Limit.

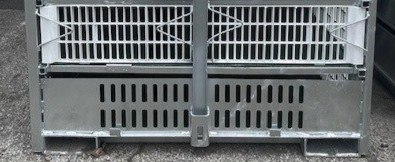

Bumper Plates

NEW One Piece bumper plates are standard at bottom to protect chickens and cages from fork damage. Old style bumper plates are still available upon request.

Frame

All front uprights are structural tubing: 1-1/2″ x 2″ x .120 wall thickness

Top

Solid 20 gauge steel

Finish

Hot dip galvanized in Prime Western Zinc; 5 year guarantee against rust-out and Bright Coop’s Famous Fit and Finish protects your cage and its cargo for years to come.

Options

Fork Tube
  • 3″ x 8″ x 3/16″ with or without inserts (adds approx. 78 lbs.)
Floors
  • Bright’s #1 green woven fiberglass with reinforced edges and metal wear tabs on ends.
  • White machine extruded chopped acrylic fiberglass
Floor Hold Downs
  • Additional floor hold downs may be added
Hook Hold Downs
  • Additional hook hold downs may be added
Partitions
  • Horizontal partitions in lieu of vertical
Top
  • Expanded metal in lieu of solid top

Specifications

Door Opening Height:
8-1/2″ +/- 1%

Inside Head Height
9-1/2″ +/- 1%

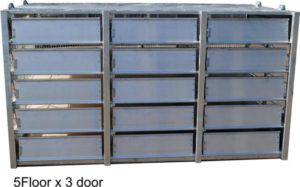

5 floors x 3 doors
Dimensions: (47-3/4″ wide; 95-3/4″ long; 52″ tall plus nesting angles
Weight: 843 lbs. +/- 1%

6 floors x 3 doors
Dimensions: 47-3/4″ wide; 95-3/4″ long; 62″ tall plus nesting angles
Weight: 945 lbs. +/- 1%

5 floors x 2 doors
Dimensions: (47-3/4″ wide; 95-3/4″ long; 52″ tall plus nesting angles
Weight: 794 lbs. +/- 1%

6 floors high x 2 doors
Dimensions: 47-3/4″ wide; 95-3/4″ long; 62″ tall plus nesting angles
Weight: 940 lbs. +/- 1%
