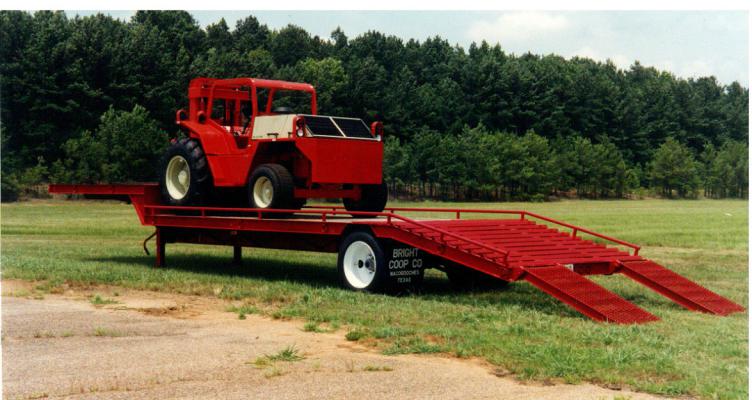

The “Single Lift Transport Trailer” was designed to move 4-wheel lift machines for the Poultry Industry. The Single Lift Transport makes it easy to deliver and additional lift on site or to another location at a moment’s notice. Capacity: 26,000 lb. GVWR
16″ Fabricated main beams,1/2″ x 6″ top flange and 3/4″ x 6″ bottom flange with 1/4″ web welded on both sides. All flange material is high strength steel.
6″ x 3.7# Jr. I-beam on 16″ centers
2″ SAE king pin, 3/8″ king pin plate, 18″ king pin setting (standard)
8″ x 8.5# (Inverted) structural channel
HUTCH H9700S three point spring suspension with hi-arc heavy duty 3 leaf spring
(1) 25,000 lb., 5″ round, 5/8″ wall
16-1/2″ x 7″, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.
8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).
255/70R x 22.5 Radials
Our standard landing gear has a 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity
Shot blasted and painted with a high solid polyurethane paint. Colors: black or red (standard). Optional epoxy or zinc-rich primer available.
1-1/2″ shiplap treated pine (standard)
7-way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn.
Single axle set at 108″ from the rear of the dovetail
6′-6″ Long, self-cleaning inverted angle iron
(12) Total: (4) 5/8″ on front deck; (8) 1″ on rear deck
- Flooring: apitong wood flooring, or steel
- Third ramp for 3-wheel field loader
- Optional paint colors available
- Epoxy or zing-rich primer available
- Tire inflation system
- Two Lift Transport also available
- Contact a sales representative for additional options to meet your specific needs
