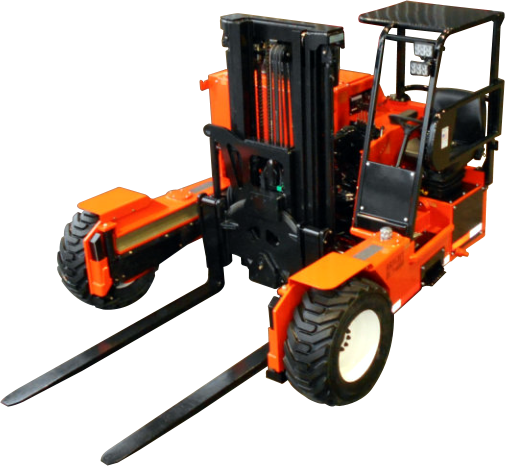

BC3-6560 3 Wheel Field Loader

-NEW for 2019
The BC3-6560 3-Wheel Poultry Forklift features a Patented Free Lift Mast (Patent No. 8777545).

The one-piece all steel welded construction makes the BC3-6560 chassis very rugged while its wide and low profile frame provide a stable machine. Extra-wide hinged type hoods and removable covers, as well as a sensible layout of major components and service points, allow for exceptional maintenance and service access.

The ergonomically designed operator enclosure features a complete instrument panel, a  foot throttle for operator friendly speed control, a forward and reverse pedal control, a main electric shut-off switch and a heavy duty suspension seat with retractable seat belt.

Related Products: The Three Wheel Lift Transport Trailer makes it easy to deliver the Bright 3-Wheel Field Loaders on-site or to another location.

Characteristics

Engine

Kubota liquid cooled V2403-CR-TIE4B with 65hp is a perfect match for the three wheel hydrostatic drive. The Final Tier IV engine is equipped with glow plugs and an overheat and low pressure shut down device.

  • Type

    4 cylinders in-line

  • Gross power (@ 2700 RPM) 65.1 HP (48.6 KW)
  • Fuel tank capacity

    25 US gal. (95 l)

  • Hydraulic main tank capacity

    22 US gal. (83 l)

Transmission

The Danfoss 40 series hydrostatic pump combined with Poclain MS05 series drive motors is the perfect match to give you the most efficient machine possible. The hydrostatic system include a high quality pressure filter to increase life expectancy.

Brakes

The forklift uses the hydrostatic as main braking system and a spring applied and hydraulic release emergency / parking brake. Using the hydrostatic as brakes gives you a maintenance free system.

Chassis

The one-piece all steel welded construction makes a very rugged and rigid chassis. Wide and low profile frame provides a stable machine. Exceptional maintenance and service access, due to extra-wide hinged type hoods and removable covers, as well as sensible layout of major components and service points.

Mast

The three-stage free lift mast is standard. The use of Thrust Blocks made of high strength and low friction thermoplastic material in the horizontal carriage, rotator and carriage side load increase the life cycle. These Thrust Blocks can sustain greater impacts than conventional expensive to maintain roller systems. Both lift chains are of multiple-leaf construction with convenient adjustment points. The hoses for carriage attachments and free lift cylinder are mounted inside the mast rails for maximum protection.

  • Hydraulic lift cylinders with safety valves

    Two 2-1/4″

  • Hydraulic free lift cylinder with safety valves

    2-1/2″

  • Hydraulic tilt cylinders

    Two 3″

Carriage

The 43-1/2″ wide high-capacity pin type carriage with rotator is standard. The 20-degree clockwise and 35-degree counterclockwise rotator uses the high strength and low friction Thrust Blocks.

Forks

The pin-type forks are made from high-grade treated steel. They are pin mounted to allow for variable fork spread. The standard forks are 72” long by 4-3/4” wide and 1-3/4” thick.

Hydraulic System

One tandem gear type pump directly mounted on the hydrostatic pump. In-tank suction strainer and easy to replace spin-on high quality return filter ensure clean oil. The monoblock control valve is easily accessible and is directly controlled. The monoblock and direct link control valve system makes this system the most reliable system possible.

Steering System

Hydraulic system delivers constant oil flow to hydrostatic steering system for uniform steering response. The steering cylinder is a 2″ with welded rod end for durability. High strength link is connected directly to the steering spindles which is equipped with oversized high capacity Timken bearings.

Tires

Front: 31.5 x 13-16.5 10 ply HD; Rear: 31.5 x 13-16.5 10 ply HD

HD Operator’s Enclosure

The ergonomically designed operator enclosure features a complete instrument panel, a combined foot and hand throttle, a forward and reverse pedal control, a main electric switch and a heavy duty suspension seat with retractable seat belt.

Complete instrument panel:

hour meter, engine temperature gauge, engine oil pressure gauge and alternator indicator. The electrical system is protected by circuit breakers instead of fuses.

Standard accessories:

Electric horn, six (6) LED working lights (3 whites and 3 reds), back up alarm, LED strobe light and D.O.T. approved LED tail and marker lights

Specifications

  • Model: BC3-6560
  • Height (to top of overhead guard):  80″
  • Wheel Base: 74-1/2″
  • Width (outside of front tires): 94-1/8″
  • Approximate Weight: 8,200 lbs. +/- 3%
    Basic Rated Capacity: 6,000 lbs. @ 24″ load center

Options

Contact a sales rep today to discuss optional configurations to meet your specific needs.
